Aside from building things, my main recreational activity is canoeing. I paddle mostly on rivers that are shallow and rocky, so I split a lot of paddles. I typically buy the Bending Branches Loon model. It's cheapish and light, feels good in my hands, and I can buy them locally. I really wanted to make my own paddle though, so that's what I did. I teach high school wood shop, and one of the great benefits is that I have a really awesome wood shop all to myself in the summer.
The first thing I did was to watch the How it's Made video on canoe paddles. It turns out this is Grey Owl's facility, and I think they are making the Voyageur in this video. I mostly did it the way they do it, with some adjustments to suit my tool availability.
I also watched this video from Sanborn Canoe Co. I mostly didn't do what they do, but I really like the way their paddles turn out, and I would like to incorporate more of their techniques in my future builds.
First, I glued up the blade halves. This looks like it's going to end up as a single glued piece of wood, but there's no glue between the two middle pieces of walnut. For my blade I used walnut closest to the shaft, then cherry, then some more walnut, then maple on the outsides for impact resistance. My paddles get beat up on the sides of the blade the worst.
Gluing the blade halves
While that was drying, I glued the shaft. It is made of basswood for light weight and stability, with a walnut stringer down the middle. The 1/16" walnut sliver was the hardest part of the entire woodworking project. At the time I didn't have a drum sander, so I had to cut it perfectly on the table saw. I really dislike cutting thin things on the table saw (and the only piece of walnut that I had at the time was warped enough that planing it flat would have made it nearly non-existent). Now that I have a drum sander I would have cut this piece on the band saw and sanded it flat, but it worked out OK anyway. I glued it all against the table to keep it straight.
Gluing the shaft
After a few hours I glued it all together, including a few pieces for the handle. I intentionally left the handle long on the blade end for two reasons. The first is that my thickness planer snipes badly, and I wanted it to snipe that leftover part instead of the blade. The second will become apparent when we get to the CNC shaping of the blade.
Gluing it all together
I made sure the handle matched the wood on the blade.
Future handle
After it dried for a few hours I ran it through the planer, taking off only what I needed to get it flat.
Thickness planer action
At this point I got really excited. If I had to do it again, I would have used single pieces of cherry on the blade instead of the two pieces glued together, or put a maple sliver between the pieces. Not a giant deal, but next time.
Looking good
Here's the handle.
Handle
The next step was to cut the profile, but I didn't cut the end of the blade. This is for when I shape the blade on the CNC, after I flip it over it will still lay flat. Pictures below. Note that the shaft is thinner than the shaft glue-up. It is 1" wide, and I planed the whole thing to 1.25" thick, to match the handle of the Bending Branches Loon that I currently use and like.
Mostly cut out on the bandsaw
Cutting straight lines on the shaft was hard for me
Next I routered the whole thing, both sides, with a half inch round-over bit This was mostly to shape the shaft and handle, and to provide a neat transition between the shape of the shaft and the upcoming blade taper. I wish I had a quarter-oval bit that would make the shaft oval instead of a rectangle with rounded corners, but I've never seen one. I could use a custom shaper blade like in the How It's Made video, but it's probably not worth it at this point. I would really love to hand shape the shaft with drawkinves and spokeshaves, but while I have both of these tools, I'm not yet adept enough at sharpening the blades to make them work well.
Beginnings of a nice shape to the walnut piece
Basswood burns badly when routering its endgrain, apparently
Before I was a wood shop teacher I was a drafter, and I teach some computer aided drafting classes too. I used these skills to model my paddle blade in Autodesk Inventor, then use the (awesome) Inventor HSM to make the g-code to shape the taper of the paddle. I would like to make the taper a more complex shape and add a small spine with the shaft transition, but I decided to keep it shaped like the Loon that I know works well for me. I have read that a spine can cause flutter if not shaped correctly, but mostly I'm lazy and I just wanted to get this done.
On the CNC!
Here is a shot that shows the main reason I kept the blade too long. If I hadn't, when I flipped it over to cut the other side it would have been difficult to hold to the table. If I didn't have a CNC, I would have cut it on a bandsaw, on its side. I doubt I would have been able to do as good of a job as the robot though. Again, someday I hope to be able to hand shape all of this with planes, chisels, and spokeshaves. They say, "To a man with a hammer, every problem looks like a nail." My hammer is my CNC.
Still with the leftover on
At this point it looked like a paddle, and I was very excited. There was a LOT of sanding to do, and I was envious of the folks in the How It's Made video's giant belt sanders.
Looks like a paddle!
I was very excited about the way the wood joints curved, and spent a lot of time making sure the transition between the shaft's 1/2" router shape and the blade taper looked good.
Walnut brings out a nice shape
I have a 2" diameter oscillating spindle sander that I used to shape the finger and palm part of the handle. I think it turned out particularly nice. I was very happy that I spent the time to get that sliver of walnut down the center cut and glued in the handle. It brings out the shape nicely.
The handle
My next step was to give it some tip protection. I beat the daylight out of the blade tips of my paddles, and if I had left this paddle as is, it would split and dent, especially where the soft basswood is exposed in the middle. I decided to make an ash tip guard, and I wanted it to be connected with a tenon and lots of glue surface. It took a long time to plan, but I decided on a two-part tip with a two-step glue-up. Here is the first half of the tip after being cut on the CNC.
Half of the ash tip guard
Then I cut the mating profile onto the blade. The walnut strip down the middle made positioning the bit in the middle of the blade much easier when I started the program.
Cutting half the tenon
Next I glued the two pieces together. They are being clamped up and down, and also along the length of the shaft. I built a clamping point out of 2x4s to pull against.
Will the gluing never end?
Then I cut the other half of the tenon on the CNC.
2nd half of the tenon
At this point I shaped the end of the blade to its final shape. This would help guide me in knowing where to cut the second half off at, as the tip of the blade wood would be hidden after the next gluing.
Final blade shape
this is the CNC of the other half of the tip guard. Note that it does not have a step, so the two pieces of ash will not be glued along the centerline of the blade, but rather offset along one side of the tenon.
More tip guard wood
Here's how it will fit.
More gluing.
Gluing never ends
While I was waiting for the last of the glue to dry, I CNC cut this piece out of a 2x4. It has an elliptical profile, and I used it with sandpaper to give my shaft a more pleasing profile. It's like a poor man's shaper.
Shaft elliptification
At this point I could hardly wait any more.
After the glue had "dried"
Impatient woodworking
Finally it was time for the big hand sander for final shaping. Things went fairly quickly.
Belt sander ftw
Next time I want to make the middle lump pointy-er.

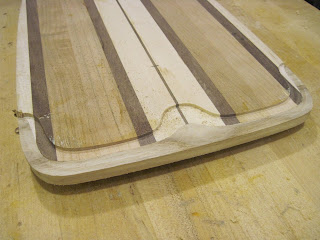

It ended up looking pretty good
Nice.
You can't really see the glue line between the two pieces of ash
I needed to fiberglass the sides of the blade for strength, and I have a laser cutter, so why not cut the fiberglass on the laser? Lots of reasons, it turns out, but I didn't know them at this time. Don't do this. The edges burn ever so slightly. Not everywhere, but enough places that it took some time to cut out the burned parts with scissors, which sort of made the laser cutting pointless. That wasn't the main reason though. More below. Also, the fiberglass you buy at Lowes is 6 oz. fiberglass, which holds way too much resin and adds weight. 4 oz. would have been better, or even less.
Laser cut fiberglass cloth.
Speaking of lasers, I used the engraver to burn my name and a logo into the basswood, which turned out nice. You have to trick this unit into thinking the front door is closed with magnets.
"Lasers"
I mostly canoe the Buffalo National River in Arkansas, and it's thanks to the hard work of Neil Compton (along with many others too) that we have this treasure. They fought for years before I was ever born to save it from being dammed. He is no longer with us, but his canoe is on display in Bentonville and it has this triangle pattern panted on it. I decided to engrave it into my paddle as an homage to him.
Thanks Neil!
Everything had gone really well, and worked on the first try, up until this point. We are now two days into fabricating this paddle, but the rest of the job would take a week and a half. I want to express at this point how much I dislike the process of fiberglassing. It's important, however, for the lifespan of the paddle. You can make the blade much thinner if you strengthen it with fiberglass, which saves weight and allows it to slice through the water easier. I decided to use epoxy resin instead of the more "normal" polyester resin because it's supposed to stick to wood better. I had used Bondo polyester resin (which I bought at Lowes) to repair a paddle once, and it worked, but indeed it delaminated from the wood in several places after time and abuse. The epoxy had almost no odor, which was great, as polyester resin smells truly awful. I used Evercoat because I was able to buy it locally, although it was a hassle finding it. Nobody stocks epoxy resin, it seems. Epoxy resin costs WAY more than polyester resin. Since completion I have been recommended to use U.S. Composites 635 thin epoxy resin, and it is much cheaper than most I have found.
Here is what NOT to do. I put the cloth on the face of the paddle, then poured the resin over it, like I saw on a YouTube video. I should have read the comments though because after I went back when this day was over and watched it again they all said not to do this. The cloth will float on the resin, which makes a space under it full of resin which adds weight but not strength, and will make the face look lumpy and not smooth.
Don't do this
Ugh. Lumpy.
What you SHOULD do is paint down a thin coat of resin, roll the fiberglass cloth onto it to stick it down, then add a bit more resin to fill the cloth. That's what I did on the other side and it worked great. Here's the problem with the laser cut cloth though, and that's that it should have overlapped the edges so that I could have cleanly sanded them down when the epoxy hardened. Instead I got this annoying ridge all the way around, near the edges, that took a ton of time and resin to fill.
Laser cut fiberglass equals misery
I was also distressed to find that the epoxy resin darkened the basswood significantly. I lost a lot of the contrast in the wood that I liked, but I guess I should have expected it, as it ended up similar in tone to my current basswood paddles. I'm not sure what I'm going to do about that in the future.
White wood is now tan wood
It took a lot of sanding and adding more epoxy, then sanding more before things started looking good again. Every coat took 24 hours before it could be sanded too. Ugh.
Before the final epoxy coats
I ended up having major fish-eye problems with my epoxy, and I never did figure out why. Eventually I just stopped adding coats and brushed a final coat of Minwax water based Spar Urethane over everything for UV protection. It turned out all right I guess, but it was way more work than it should have been.
Finally!
I didn't weigh it before the fiberglass, but it sure did feel heavier afterwards. One pound thirteen ounces isn't terrible, but it's heavier than I wanted. I could have thinned the blade more, I think, and that's where you want the weight reduced.
A tad on the heavy side
Overall I'm happy with the way it turned out. I'm going to try to use and abuse it like a normal paddle. It's been a fairly dry late summer and fall paddling season though, so even though it's November now, I still haven't had a chance to try it out.
Since I built this one, I mostly completed another paddle, made mostly of western red cedar, but the CNC gave up in the middle and plunged a giant gouge right down the middle of my blade. Another reason to switch to hand tools? We have a new control board and everything seems to be back to normal. I have also purchased the book Canoe Paddles: A Complete Guide to Making Your Own, and I would recommend it.
